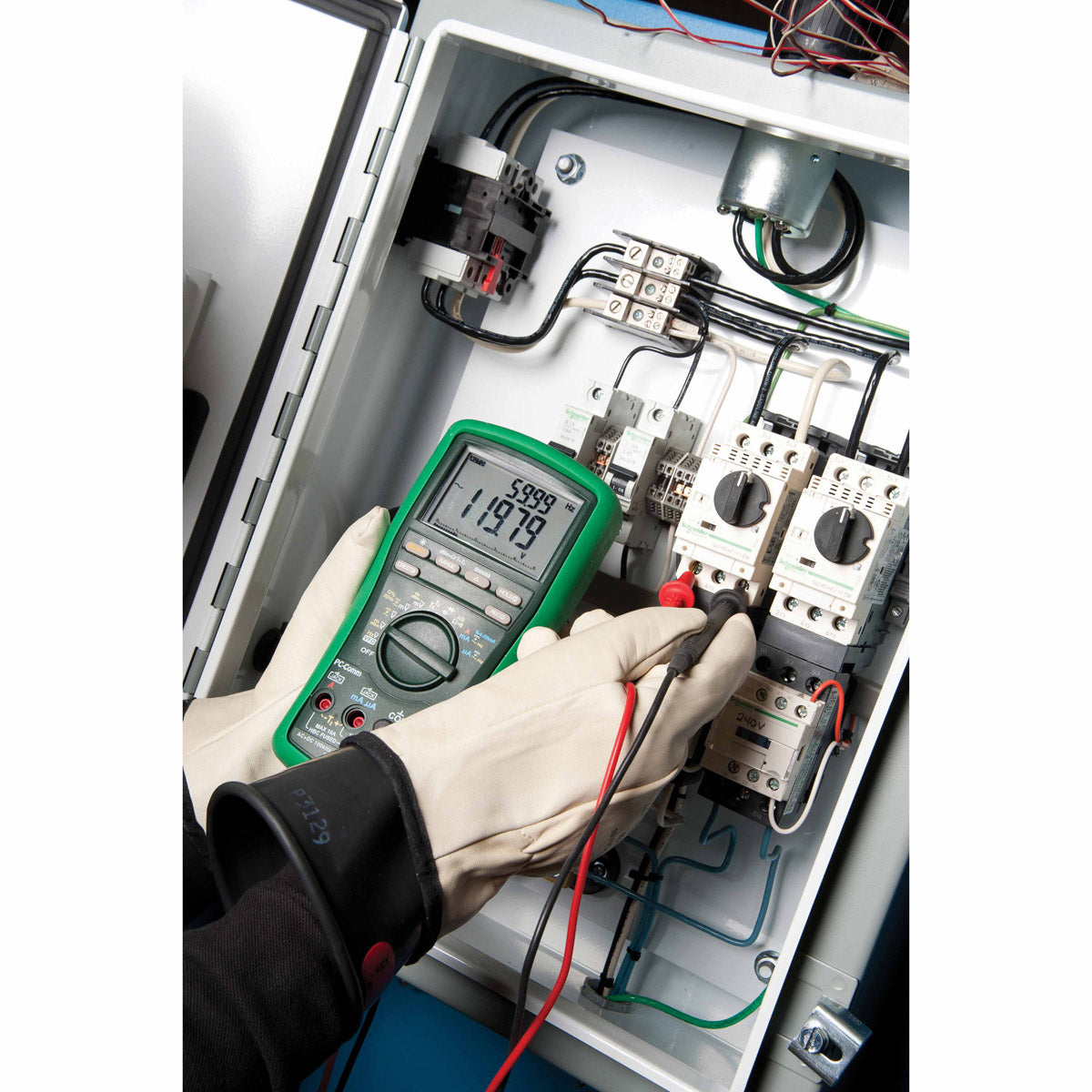

The Greenlee DM - 860A industrial digital multimeter comes with a comprehensive set of accessories. It includes a 9V battery, a bead temperature probe, test leads, a protective boot, and a convenient carrying case. This multimeter offers top - notch features for accurate and easy electrical measurements. It has AC + DC True RMS with a 50,000 - count dual display, ensuring high - precision readings. The VFD (variable frequency drive) voltage and frequency functions work great for getting accurate results on noisy drive waveforms. The Beep - Jack™ audible and visual input alert is a smart feature that helps prevent blown fuses and meter damage. The 41 - segment analog bar graph allows you to quickly spot changes. It can record max, min, avg, and max - min values, and has a data hold function. Crest capture (peak hold) records the max and min readings. The relative offset display mode simplifies the monitoring of relative measurement changes. It can perform a wide range of measurements such as resistance, conductance, frequency, duty cycle, temperature, and capacitance, along with diode and continuity tests. With type K thermocouples, it can measure dual temperature up to 1832°F/1000°C. Autoranging makes operation convenient and saves your time. The bright, backlit display is easy to read in any lighting condition. The intelligent auto power off conserves battery life without turning off during measurements. It has a wide AC bandwidth (up to 100 kHz for voltage and 20 kHz for current). You can connect it to a PC via a USB interface using an optional DMSC - 9U cable and software for extended measurement capabilities. And it comes with a lifetime limited warranty. Specifications: 5 - digit UPC is 12938. Voltage measurement ranges from 500.00mV to 1000.0V. DC voltage measurement is in 500,000 counts mode. Amperage measurement covers various ranges from 500.00µA to 10.000A. Resistance ranges from 500.00 to 50.000M. Conductance is 99.99 nS. Capacitance ranges from 50.00nF to 25.00 mF. Frequency can measure 5Hz - 200kHz sine wave and 5Hz - 2MHz logic level square wave. Temperature measurement is with K type from - 58°F to 1832°F (- 50°C to 1000°C).
Using the Greenlee DM - 860A is quite straightforward. First, make sure to insert the 9V battery properly. Connect the test leads to the appropriate ports for the measurement you want to take. For temperature measurements, attach the bead temperature probe. When using it, keep in mind that the Beep - Jack™ alert will let you know if there's an issue to avoid damaging the meter. If you're measuring in a noisy environment, the VFD functions will help you get accurate readings. To save battery life, rely on the intelligent auto power - off feature, but note that it won't turn off during measurements. For extended measurement capabilities, you can connect it to a PC using the optional DMSC - 9U cable and software. When it comes to maintenance, keep the meter in the protective boot and the carrying case when not in use. Clean the meter with a soft, dry cloth. If you have any issues, refer to the lifetime limited warranty for support.
